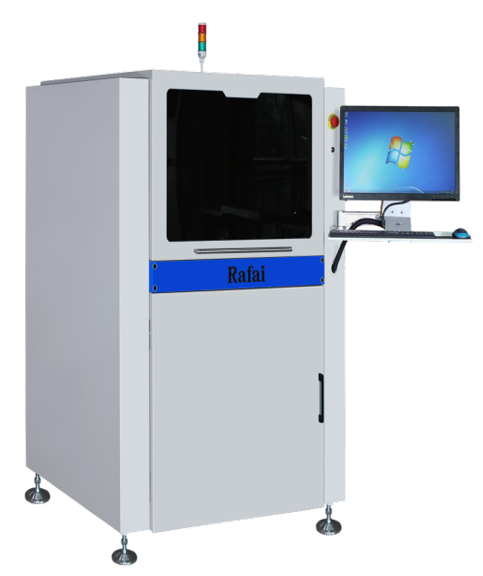

project

Function

Equipment size/screen frame size

1250*1340*1530mm/Supports screen frames below 813*813*60mm

Automatic steel mesh mesh test

Location, size, area, quantity, foreign matter, long force, burrs, multiple or few holes;

Steel mesh opening detection

12 million camera, 3.45~6.9um optical resolution
Can detect openings with a minimum size of 40μm and damage with a minimum size of 15μm or above

3D steel mesh thickness measurement

Optional microscopic visual measurement of the thickness and quality of cut surface walls of steel mesh and stepped steel mesh
Detection resolution: 0.4μm, measurement accuracy: ±2μm;
You can zoom in to observe the cut surface of the steel mesh;

Automatic tension test

High-precision tensiometer, capable of testing at any number of positions;
Accuracy: ±1N.cm, tension range: 0~50N;

Automatic laser focus, ranging

Use laser to focus quickly and accurately, and can measure steel mesh deformation, etc.

Barcode scanning information management

Quickly manage programs and data through barcode scanning

Automatic offline programming software

Offline automatic GERBER file programming software

GERBER custom functions

Customizable GERBER definition

GERBER comparison check

Comparative inspection of steel mesh GERBER and CAD/BOM and PCB GERBER files

GERBER comparison check

SPC statistics and data package table functions

PCB pad collection function

Can scan PCB pads and generate GERBER files, scanning accuracy: 0.008mm
