Standard automation equipment

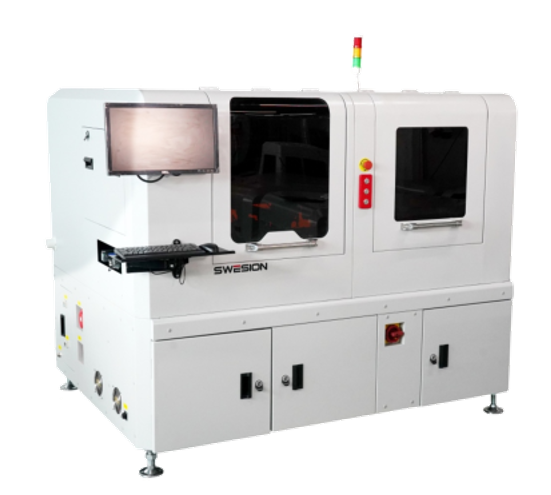

A dual workbench that is equipped with a high-speed pick-and-place system, a vacuum cleaning system, an automatic tray supply system, and a multi-functional automatic tool changing system.
|
project |
Function |
|
Overall dimensions |
2050(L)*1450(W)*1600(H)mm |
|
weight |
1200kg |
|
Scope of work |
350mm*300mm |
|
Positioning accuracy |
±0.01mm |
|
PCB fixed reinforcement |
Vacuum assist PCB board |
|
PCB pick and place |
Vacuum material picking and placing arm |
|
PCB thickness |
0.5mm~3mm |
|
Cutting accuracy |
±0.05mm |
|
Milling cutter specifications |
0.8mm~3mm，Support broken tool detection |
|
Vacuum system |
Vacuum cleaning system, up and down vacuuming, vacuum cleaner power 2.2KW |
|
programming |
Support online programming and offline programming |
|
Tray size |
350mm*350mm |
|
Component height |
Top ≤20mm, bottom ≤30mm |
